| With optimized heat treatment, 1.4034 can achieve a hardness in the range of 58–60 HRC, providing quite good edge retention. In comparison, it is often only hardened to about 52–55 HRC in many industrial and production knives, which means the steel’s potential is only partially utilized. |
The 1.4034 steel / AISI 420HC or Böhler N540 (x46cr13) is a hardenable chromium steel.

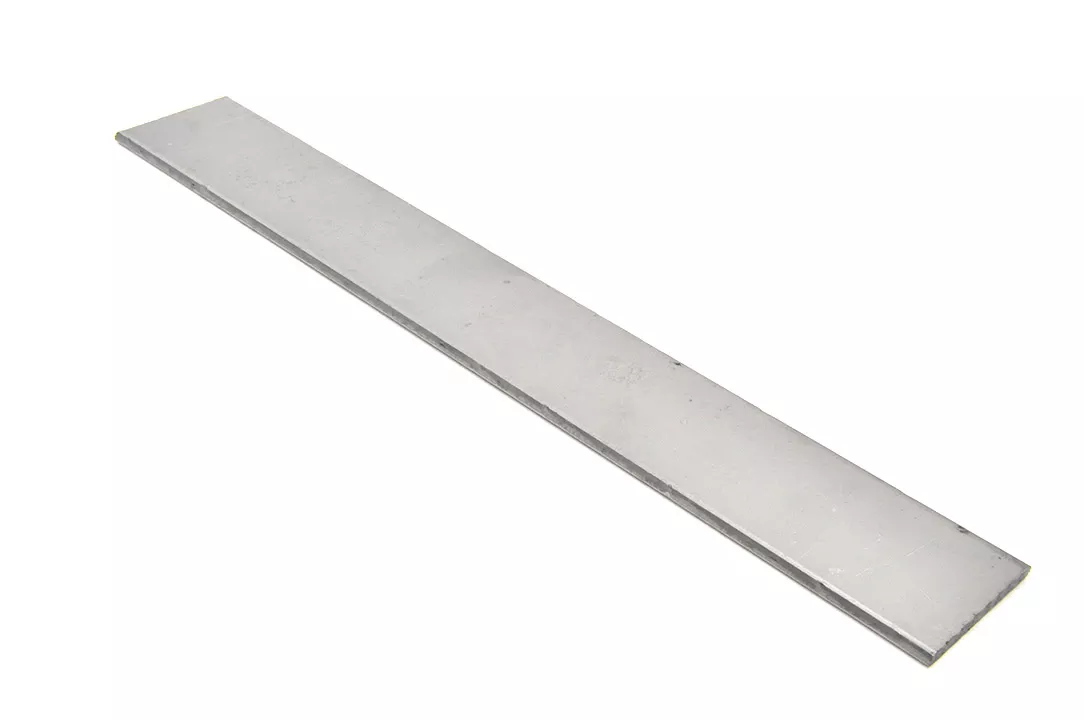

Laser-cut steel blank
Properties
Recommended applications
Hardness potential and practical values
For 1.4034, alloy tolerances, especially in carbon and chromium content, have a noticeable effect on achievable hardness. Therefore, for example, 60–61 HRC is not always realistically attainable. In our experience, with high-quality 1.4034, a maximum working hardness of 59–60 HRC can be achieved, and in individual cases even up to 61 HRC.
If the heat treater succeeds in achieving these high HRC values without causing a coarse microstructure, the range of applications expands further. This makes even very fine geometries, such as those found in razors or Japanese chef’s knives, possible.
1.4034 is not always pushed to its full maximum, as this requires very precise heat treatment, and in many cases a somewhat more moderate hardness is the more balanced solution. For most knife blades, hardness values of about 57–59 HRC have proven to be the most practical range.
Chemical composition
C: 0,45% | Si: 0,4% | Mn: 0,5% | Cr: 13,75%
Our "1.4034 or Böhler N540" heat treatment recommendation:
Hardening:
Annealing: Hold for 2 hours at 750°C - 850°C, then cool slowly.
Forging: 1100°C to 900°C / Slow cooling
Finish
rolled & annealed
German production
Edges may be sharp – risk of cuts! Always wear appropriate protective equipment when working: gloves, safety glasses, and a dust mask. Store in a dry place to prevent corrosion. Not suitable for children – not a toy!
