Logo Mobile
zladinox-carbon-wilderdamast
zladinox-carbon-wilderdamast

ZDI carbon - wild damascus

EUR 1,55 /per cm
incl. 20% VAT.

In stock.

Shipping time varies by destination country.

Shipping costs
cm

Product description

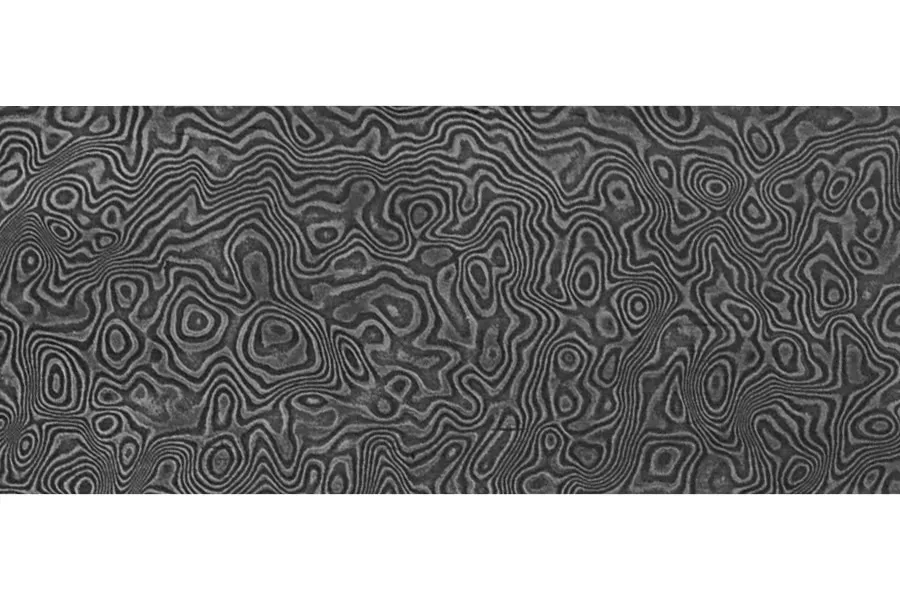

Carbon damascus steel from Zladinox with the "Wild" pattern, 300 layers.
This damascus is less prone to corrosion than conventional carbon damascus.

ZDI Carbon is a carbon-tungsten steel with low resistance to rust.

Properties

  • Very high sharpness
  • High wear resistance and edge retention
  • High toughness
  • For fine edges
  • Low corrosion resistance



Chemical composition

Component A: C75
Component B: 100X5Mo

Chemical mixed analysis

  • C: 1,0%
  • Cr: 3,15%
  • W: 0,7%
  • Mn: 0,2%
  • Ni: 0,15%
  • Si: 0,2%
  • V: 0,3%



Heat treatment / Zladinox carbon hardening

  • Hardening: 960 - 980°C (oil)
  • Tempering: 2 hours at 180°C
  • Hardness: ~62 HRC



Zladinox carbon etching carbon damascus


Dark etching:

Before etching, the blade should have a hand finish (lengthwise) with grit 1500.
For wet sanding, the sandpaper should be wrapped around a hard backing (e.g. file or a piece of steel/brass/wood).

Step 1: 10 minutes in ferric chloride (10% - 15%)
Step 2: Sand lengthwise under running water with abrasive sheet (K2000)
Step 3: 5 minutes in ferric chloride (10% - 15%)
Step 4: Sand lengthwise under running water with abrasive sheet (K3000)

Steps 3 & 4 can be repeated as needed.
Alternatively, the knife can be placed in coffee grounds (strong instant coffee, water-coffee ratio: 2:1) for 4-12 hours afterwards.

Light etching:

Step 1: 15 minutes in ferric chloride (10% - 15%)
Step 2: Polish with a soft buffing wheel and fine paste.


Frequently bought together with

More Information


Knife Making Blog

English | Change Language

© webShopGG Software v1.9.0
