Screw rivet / Corby rivet

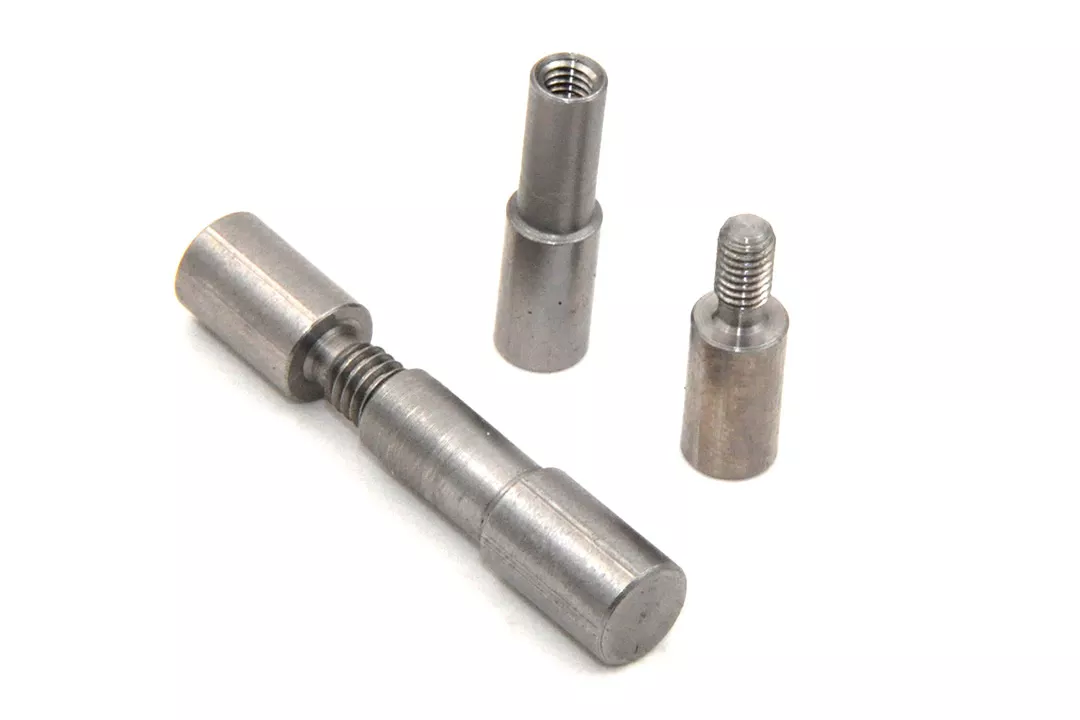

Custom-made screw rivet (Corby rivet) for fastening, made from stainless 1.4104 quality free-cutting steel, screw and nut part for easy handle attachment.

To assemble the screw rivets, simply saw a slot into the screw part with a hand saw and tighten with a sturdy screwdriver.
Afterwards, the screws can be ground together with the handle.

Features

• Good polishability
• Very good machinability
• Due to the strong screw connection, no clamps are needed during handle assembly if glued
• Made in Austria

Dimensions 6mm
d2=6mm, d1=5mm, k=9mm, l=10mm, M4x8mm
Requires a 5mm core hole, and the handle scales must be counterbored from the outside with a 6mm drill/countersink.

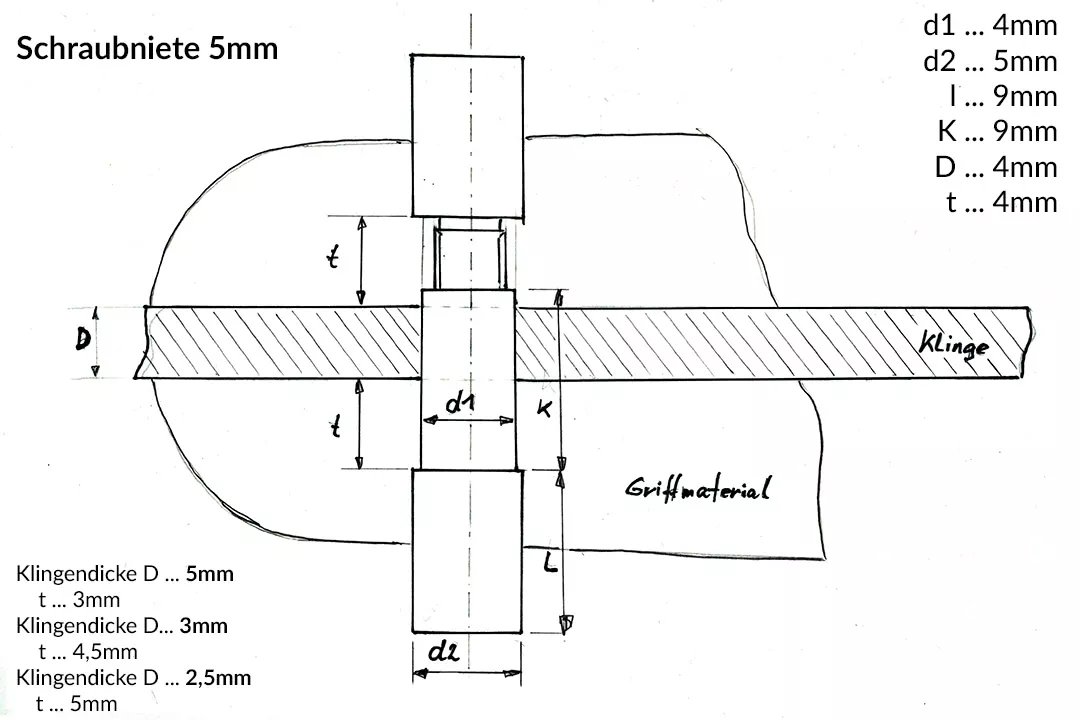

Dimensions 5mm
d2=5mm, d1=4mm, k=9mm, l=9mm, M3x6mm
Requires a 4mm core hole, and the handle scales must be counterbored from the outside with a 5mm drill/countersink.

Attention! When counterboring, do not drill through the entire handle scales, otherwise the screw rivets cannot be tightened.

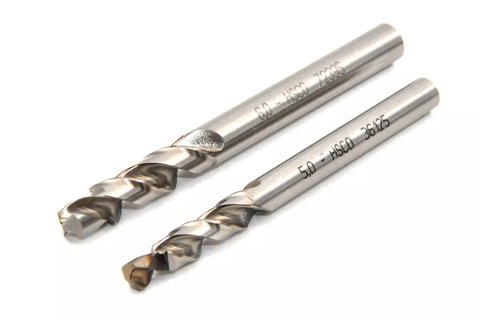

We use and recommend countersinks that are custom-made for us for this purpose:
Countersink for screw rivet

Scope of delivery: 1 nut part, 1 screw part
