VG10 CORE Damascus - Ladder

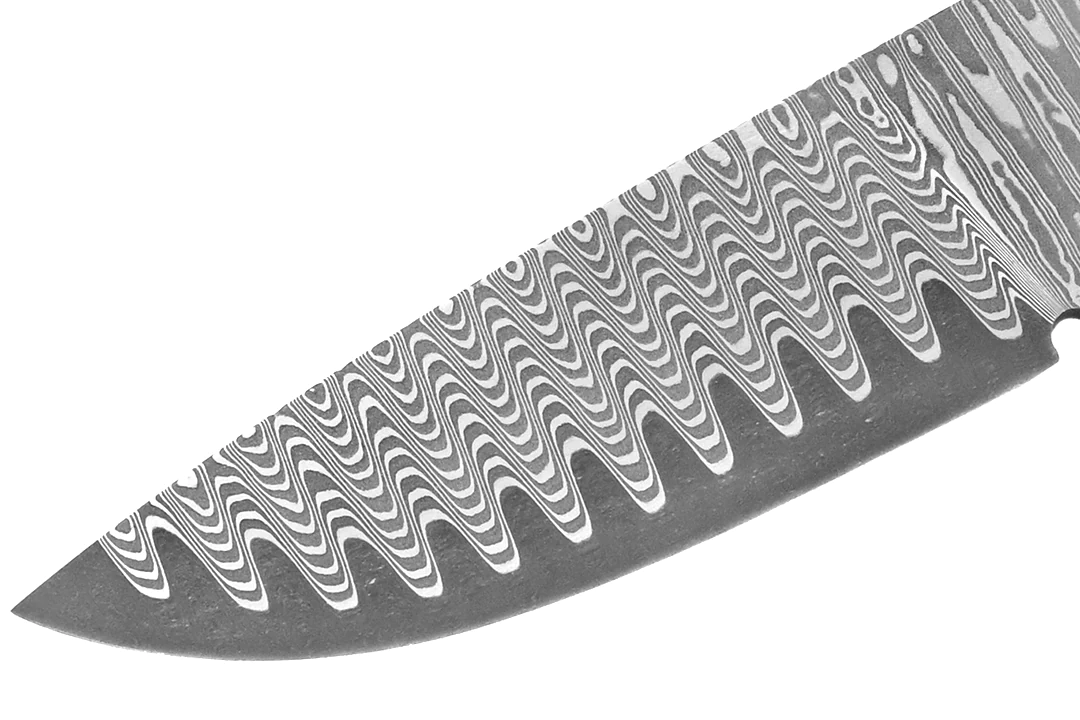

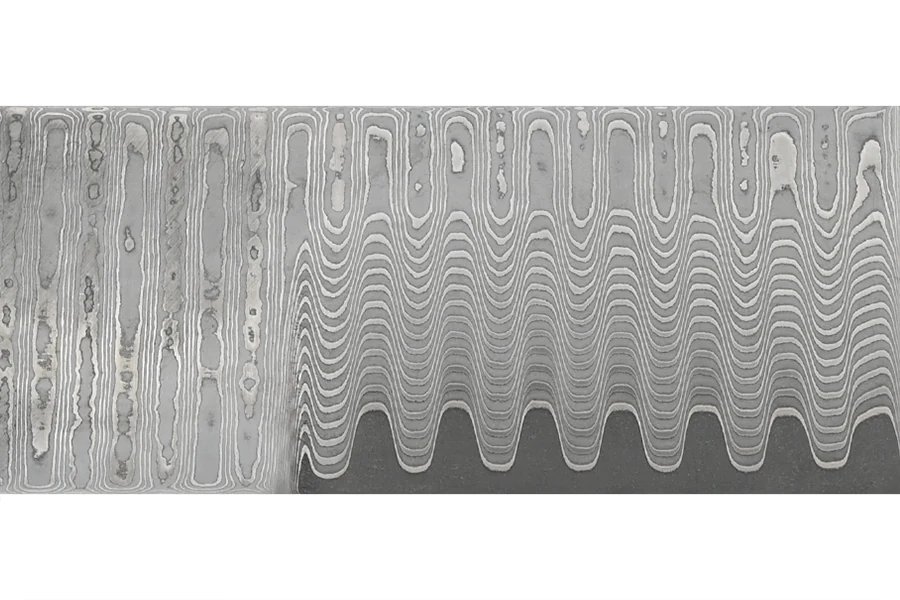

Stainless VG10 Core Damascus with VG10 core layer in the "Ladder" pattern.
This damascus should have at least 1,0 mm at the edge before hardening.

Properties

• Good workability
• High edge retention & wear resistance
• Hard core layer made of VG10 steel
• Good contrast

Chemical analysis (core layer VG10)

• C: 1,15%
• Cr: 15%
• Mo: 1%
• Mn: 0,3%
• W: 0,15%
• Si: 0,2%
• Cu: 0,15%
• P: 0,029%
• S: 0,002%

Heat treatment / hardening VG10 Core

• Hardening: 1070°C (air)
• Tempering: 2 hours at 200°C
• Annealing: 850°C
• Hardness: ~62 HRC



Recommendation for etching

Gloss finish: High-gloss polish, then in 33% hydrochloric acid for 3-10 minutes
Matte finish: Pre-sanded to approx. grit 800, then in 33% hydrochloric acid for 3-10 minutes

Finish
rolled & annealed
