BladeDamast INOX - Lg. Rhombus

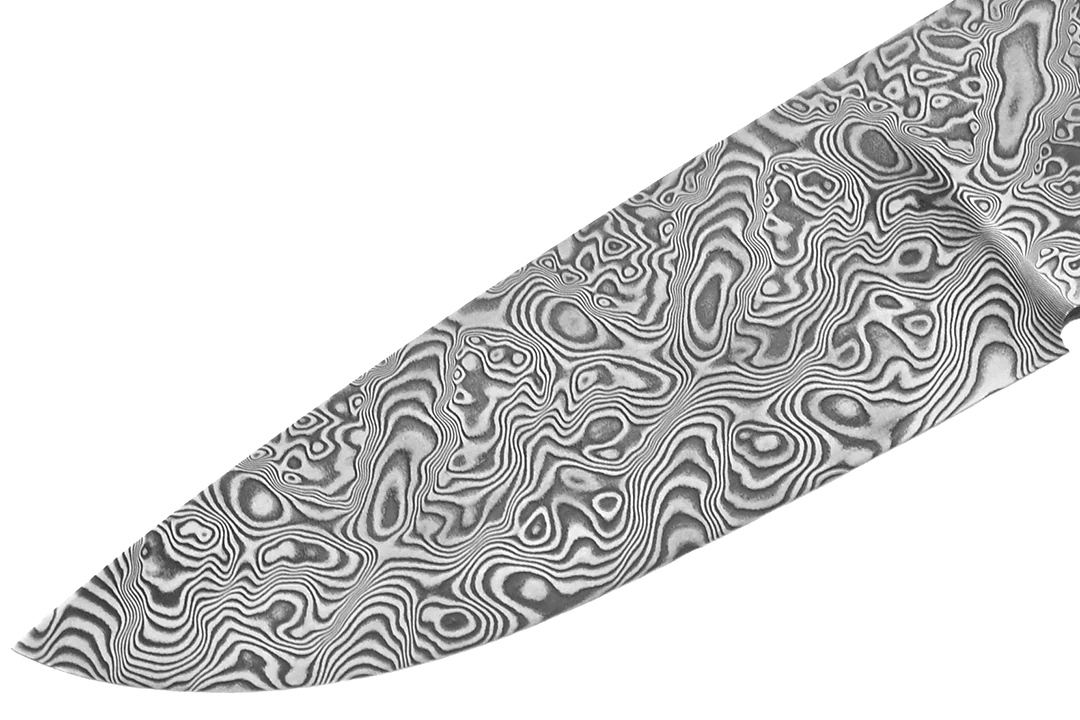

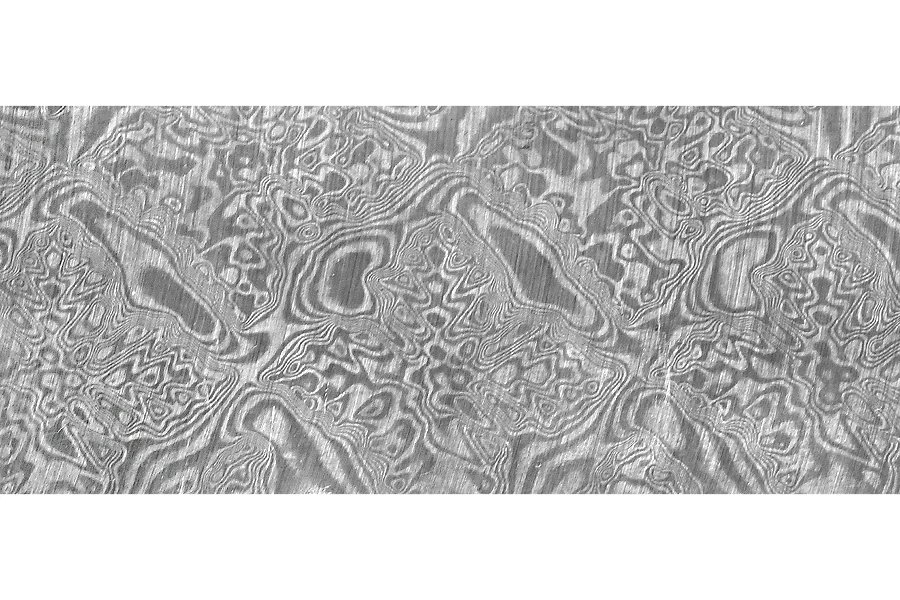

Stainless BladeDamast INOX damascus steel in the "Gr. Raute" pattern.

Properties

• High edge retention & wear resistance
• Good contrast
• Good polishability
• High hardness

Chemical composition analysis

• C: 0,77%
• Cr: 14,5%
• Mo: 0,6%
• Si: 0,35%
• W: 0,15%
• P: 0,03%
• S: 0,004%

Heat treatment / BladeDamast INOX hardening

• Hardening: 1070°C (air)
• Tempering: 2 hours at 180°C
• Hardness: ~61 HRC



Etching recommendation

This steel can be etched with ~30% sulfuric acid or ~33% hydrochloric acid.
Sulfuric acid works best if the blade is sanded only up to max grit 2000.
With hydrochloric acid, you can polish the blade to a high gloss beforehand for a good result.

Depending on preference, you can lightly polish again after etching or finish with fine sandpaper.

Finish
rolled & annealed
